Orthoralix 9000 Dental X-Ray - User and Installation Manual
DENTSPLY
GENDEX

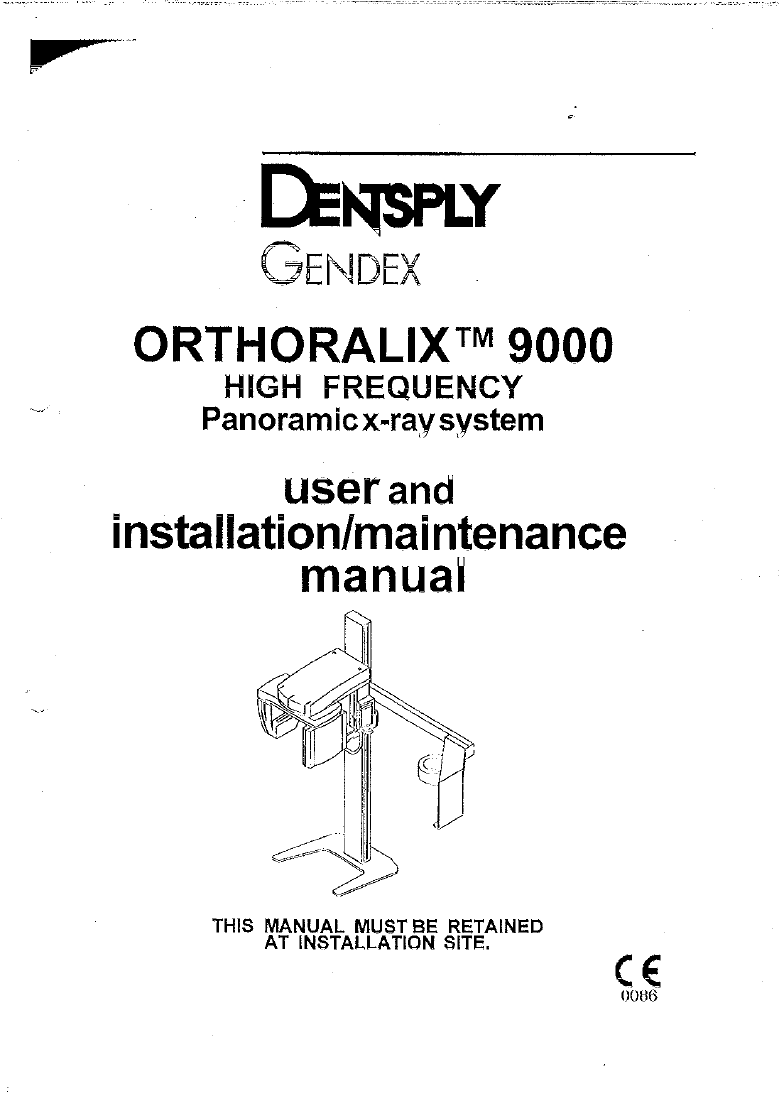

ORTHORALIX™ 9000
HIGH FREQUENCY
Panoramicx-raysystem
user and installation/maintenance manual
THIS MANUAL MUST BE RETAINED AT INSTALLATION SITE.
Contents
- Preinstallation 1-1
- Certified Component 1-2
- Site Requirements 1-4
- Installation 2-1
- Electrical System Checks 3-1
- System Alignment 4-1
- Error Codes 5-1
- Parts 6-1
- Circuit Board Diagrams, 7-1
Schematics
SECTION 1
PREINSTALLATION
Catalog No. A9000
ORTHORAL IX 9000 Panoramic System
Catalog No. A9012
ORTHORAL IX 9000 Panoramic/Ceph System
O
Introduction
IMPORTANT...X-RAY PROTECTION
X-ray equipment may cause injury if used improperly. The instructions contained in this manual must be read and followed when installing and operating the ORTHORALIX 9000. DENTSPLY/GENDEX dealers will be glad to assist you in placing the ORTHORALIX 9000 in operation.
The ORTHOVAL.IX 9000 provides a high degree of protection from unnecessary X-radiation. However, no practical design can provide complete protection, nor prevent operators from exposing themselves or others to unnecessary radiation.
It is important that you become fully acquainted with applicable government radiation protection regulations. Many provisions of these regulations are based on the recommendations of the National Council on Radiation Protection and Measurements. Recommendations for dental X-ray protection are published in NCFIP Report Number 35 available from NCFIP Publications, 7910 Woodmont Ave., Suite 800, Bethesda, MD 20814.
Personal radiation monitoring and protective devices are available. You are urged to use them to protect against unnecessary X-radiation exposure.
Copyright
© 1997 by DENTSPLY/GENDIEX X-Ray Division
Documentation, ORTHOHAL.IX™ 9000, and the software are copyrighted with all rights reserved. Under the copyright laws the documentation may not be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine readable form in whole or part, without the prior written permission of DENTSPLY/ GENTEX X-Ray Division.
GENDEX™ and ORTHOHAL IX™ are registered trademarks by Dentsply International Inc.
Kodak, Lanox and T-MAT are registered trademarks of Eastman Kodak company.
The original language of this manual is English.
CERTIFIED COMPONENT COMPATIBILITY
The ORTIORALIX 9000 Panoramic X-ray System consists of the following certified compatible components, manufactured by DENTSPLY/GENDEX:
Model Number
| Overhead/Control | 110-0147G1 |
| Column | 110-0144G1 |
| Collimator | 4519-124-21312 |
| Gephalometric. Arm | 110-0152G1 |
| Free Standing Base | 112-0892G1 |
DENTSPLY GENDEX ORTHORALIX™ 9000
CERTIFICATION
The cerilified components of the system comply with U.S. Radiation Performance Standards 21 CFR, Subchapter J, at time of manufacture.
The CE symbol ensures that the product herein specified, and manufactured from the year 1997 onwards, meets the provisions of the European Council Directive 89/336/EEG relating to electromagnetic compatibility, and European Council Directive 93/42/EEG concerning medical devices.
ENVIRONMENTAL LIMITATIONS
Cooling and duty rating specifications apply at altitudes up to 12,000 feet (3657 motors), average relative humidity not exceeding 95 percent, and maximum ambient temperature not exceeding 80°F. (26.6°C) Operational humidity 93 percent non-condensing @ 25°C, temperature 10-40°C.
APPROXIMATE SHIPPING SIZES AND WEIGHTS ORTHORALIX 9000 Components
| Length | Width | Height | Volume | Weight | ||||||
| ln. | cm. | ln. | cm. | ln. | cm. | Cu. Ft. | C.M. | Lbs. | Kg. | |
| Overhead | 55 | 140 | 27 | 69 | 40 | 102 | 34 | 0.99 | 359 | 163 |
| Column | 91 | 231 | 20 | 51 | 16 | 41 | 17 | 0.48 | 465 | 211 |
| Ceph. Kit | 43 | 109 | 30 | 76 | 21 | 53 | 16 | 0.44 | 57 | 26 |
| FS Base | 45 | 144 | 38 | 97 | 6 | 15 | 6 | 0.21 | 178 | 81 |
| Totals | 1050 | 481 | ||||||||
SITE REQUIREMENTS
$ \triangle $
2. LOCATION CONSIDERATIONS
a. The ORTHOHALX™ 9000 should have a minimum area of 8' (244cm) high by 4'2" (127 cm) deep and 4' (122 cm) wide (6'1" (18G cm) with ccp). Access for operator and patient should be considered according to the plan below. The stand is mounted 7" (17.8 cm) from the wall, using the furnished wall brackets. The column base plate may be anchored to the floor. Wall bracket location and column base plate mounting do not apply when optional free standing base is used.
b. The ORTHORAL IX 9000 is operated from the right side of the equipment. It is recommended that a minimum of 34" (86 cm) from the center line of the column is allowed on the right side of stand for operator access.
e. Each wall bracket support bolt (installer provided) must withstand 120 lbs. (54.4 kg.) of shear load and 400 lbs. (181.4 kg.) of withdrawal force. No external support is necessary
